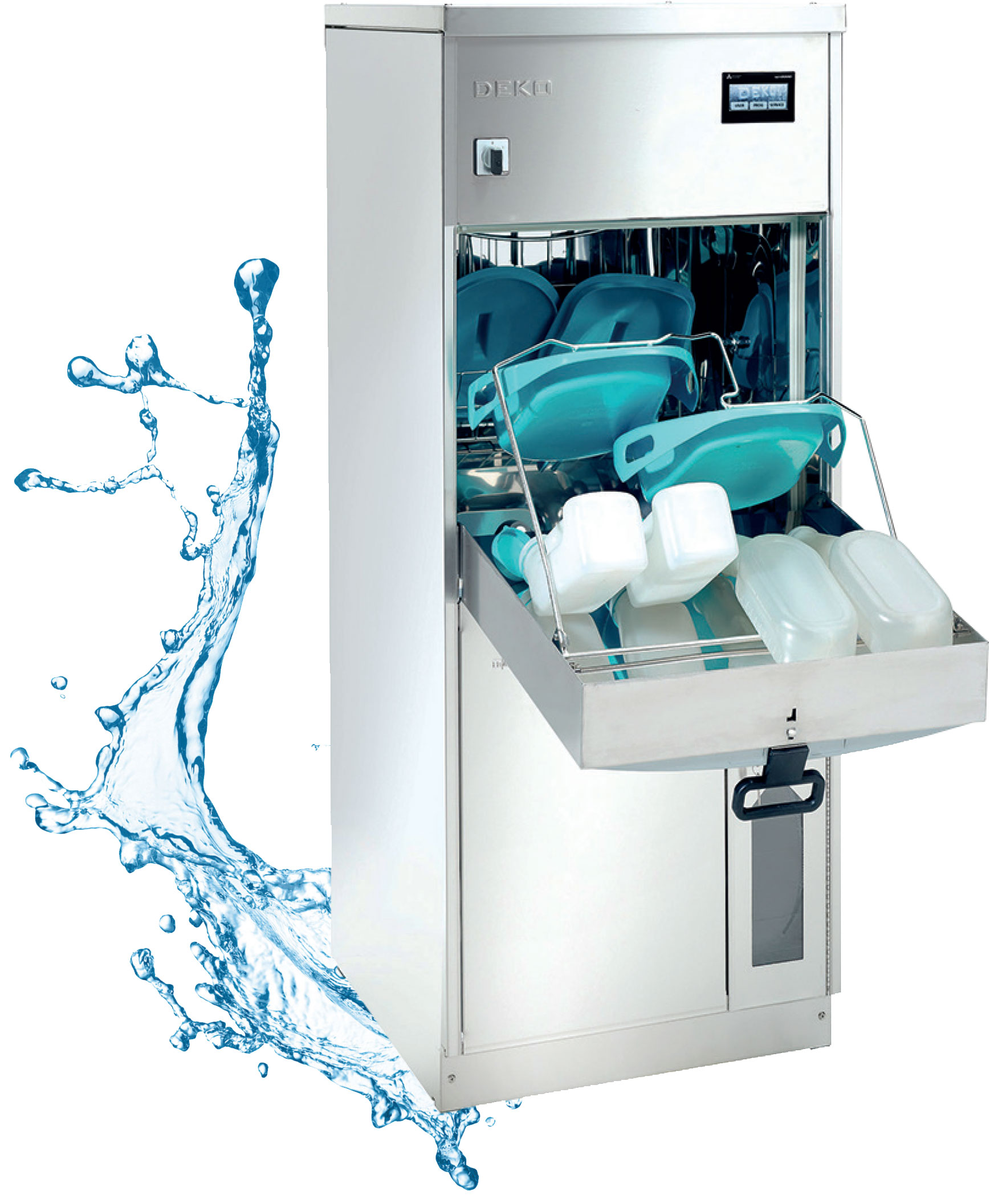

DEKO 190 BEDPAN FLUSHER AND DISINFECTOR

The DEKO 190 is designed and constructed to meet the standard performance and design requirements stated in ISO EN 15883-1 Washer-disinfectors - Part 1 and Part 3: Requirements and tests for washer-disinfectors employing thermal disinfection for human waste containers. Thanks to the unique, patented fresh water recirculation principle of the DEKO 190, the machine has a minimal need for energy and water in relation to the capacity and efficacy of the adjustable process cycles. Also the thermal disinfection of outlet, water tank and pipework in every cycle is of great importance and only available in the DEKO 190. The DEKO 190 is intended for emptying, flushing, cleaning and thermal disinfection of reusable waste containers. Gross wash chamber volume - 72L. Comes standard with a holder for 2 bedpans, 4 urine bottle nozzles, fold down wash shelf, detergent pump, and detergent container housing.
FEATURES
3 rotating plus 7 fixed wash jets Automatic detergent dosage Indication for insufficient volume of detergent to complete cycle Load temperature protection and over temperature cut-outs Automatic foam and washing water pressure control system Sound and heat insulated Vapour Condenser Height adjustable feet	Powerful circulation water pump, output 600 L/min Cycle Phase Indication Display indicates cycle completion Fault indication and coded information Access to regulation of critical process parameter values with authorized person entry code only Component test mode for preventative maintenance
SPECIFICATIONS
WIDTH – 23.6" (600mm) DEPTH – 24.8" (630mm) HEIGHT – 57.5" - 63.4" (1460mm - 1610mm)	CHAMBER WIDTH - 18.9" (480mm) CHAMBER DEPTH - 14.2" (360mm) CHAMBER HEIGHT - 25.2" (640mm)

ITEM #
SPFDEKO190

DESCRIPTION
DEKO 190 BEDPAN FLUSHER AND DISINFECTOR
